Description
Product name:

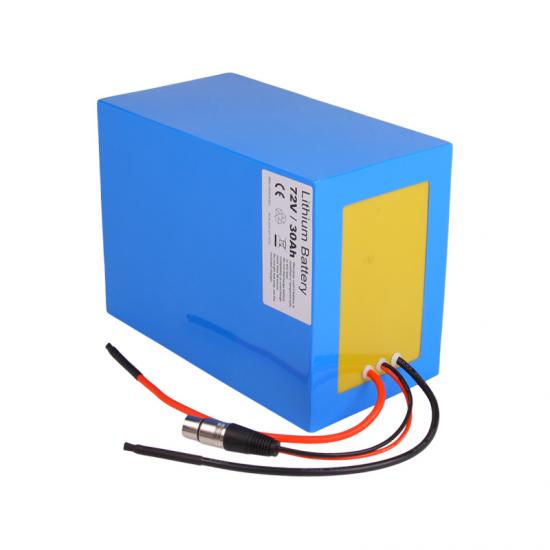

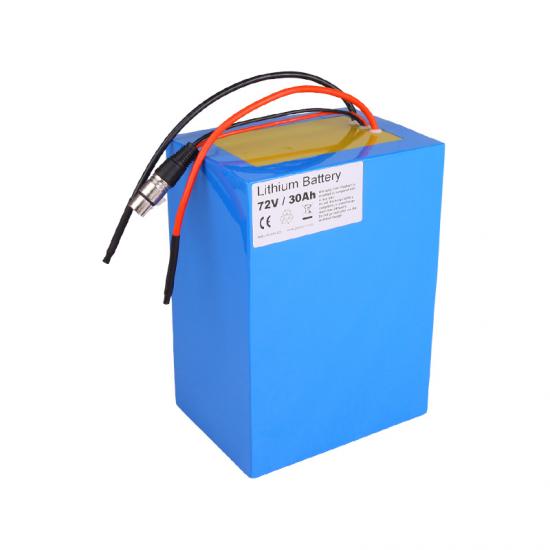

3000W 72V30Ah Lithium ion Battery Pack For Electric Motorcycle
Highlight:
The Lithium Ion Battery 72v30Ah offers high level safety that using Lithium Phosphate technology (LiFePO4 or LFP)
High-end MOS transistor ,low internal resistance,more stable current
Quality construction with Automotive spot welding eliminating human error
Pure nickel strip can pass high current,and will not get rusty even use for longer time .
40A BMS (Battery Management System) balances cells and protects cells from overcharge, over discharge, short circuit and overheating.
Customized Shape/Size design according to your requirements. (Shrinkable PVC,Plastic Case,Steel Stainless,Aluminum case for your choose .)
Specification:
| Nominal Voltage | 72V |
| Nominal Capacity | 30Ah |
| Cells | LiFePO4 26650 3.2V |
| Configuration | 24S9P |
| Dimensions | (can be customized) |
| Weight | 20.5kg |
| Continuous Discharge Current | 40A |
| Peak Discharge Current | 80A |
| Full Charged Voltage | 87.6V (3.65V per cell) |
| Charge Cut-off Voltage | 93.6V (3.9V per cell) |
| Discharge Cut-off Voltage | 48V (2.0V per cell) |
| Standard Charge Current | 6A |
| Charge Method | CC/CV |
| Charge Temperature | 0°C–45°C |
| Discharge Temperature | -10°C–60°C |
| Cycle Life | 2000 times (80% of initial capacity at 0.2C rate, IEC Standard) |
| Warranty | Battery warranty 24 months, charger warranty 12 months (subject to user guidelines being ) |
